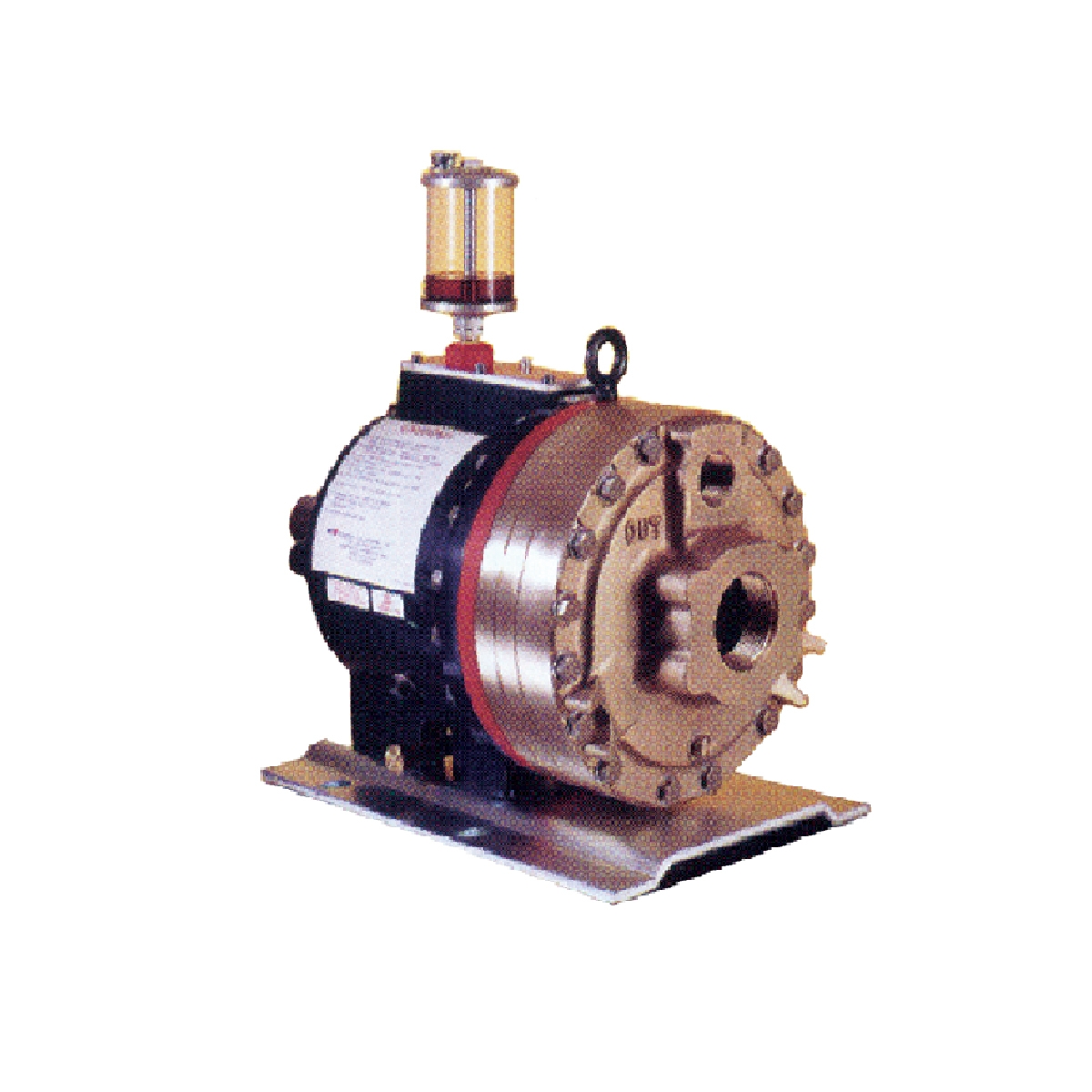

Diaphragm Pump (Hydra-Cell)
Fluid Prowess Sdn BhdType: Sale
Versatile, Reliable Pumps for a Wide Range of Applications
Description
D35 Series (US) / G35 Series (Metric)
| Maximum Flow Rate: | 36.5 gpm (138 l/min) |
| Maximum Pressure: | 1500 psi (103 bar) for Metallic Pump Heads |
- Pumps the full spectrum of low-to-high viscosity fluids.
- Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
- Simple, compact design reduces initial investment and lowers maintenance costs.
- Operational efficiencies reduce energy costs.
- Able to run dry without damage (or additional maintenance) to the pump in case of accident or operator error.
- Tolerates non-ideal operating conditions.
- Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace.
D35 - Datasheets
| Model | rpm | gpm | l/min |
|---|---|---|---|
| D35-X | 1050 | 36.5 | 138 |
| D35-E | 1150 | 34.0 | 129 |
| Model | gal/rev | liters/rev |
|---|---|---|
| D35-X | 0.0347 | 0.1314 |
| D35-E | 0.0296 | 0.1120 |
| Model | gal/rev | liters/rev |
|---|---|---|
| D35-X | 0.0330 | 0.1250 |
| Maximum Discharge Pressure | |
| Metallic Heads: | 1500 psi (103 bar) @ 700 rpm |
| Maximum Inlet Pressure | 250 psi (17 bar) with 1500 psi (103 bar) |
| maximum discharge pressure | |
| 500 psi (34 bar) with 1200 psi (83 bar) | |
| maximum discharge pressure | |
| Maximum Operating Temperature | |
| Metallic Heads: | 250 ̊F (121 ̊C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). |
| Maximum Solids Size | 800 microns |
| Inlet Port | 2-1/2 inch NPT or 3 inch SAE flange |
| Discharge Port | 1-1/4 inch NPT or 1-1/4 inch SAE flange |
| Shaft Diameter | 2 inch (50.8 mm) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 5.0 US quarts (4.7 liters) |
| Weight | |
| Metallic Heads: | 240 lbs. (109 kg) |
G35 Series (Metric)
| Model | rpm | gpm | l/min |
|---|---|---|---|
| G35-X | 960 | 33.50 | 127.00 |
| G35-E | 960 | 29.00 | 110.00 |
| Model | rpm | gpm | l/min |
|---|---|---|---|
| G35-X | 730 | 25.50 | 96.60 |
| G35-E | 730 | 22.10 | 83.60 |
| Model | gal/rev | liters/rev |
|---|---|---|
| G35-X | 0.0347 | 0.1314 |
| G35-E | 0.0296 | 0.1120 |
| Model | gal/rev | liters/rev |
|---|---|---|
| G35-X | 0.0330 | 0.1250 |
| Maximum Discharge Pressure | |
| Metallic Heads: | 103 bar (1500 psi) @ 700 rpm |
| Maximum Inlet Pressure | 17 bar (250 psi) with 103 bar (1500 psi) |
| maximum discharge pressure | |
| 34 bar (500 psi) with 83 bar (1200 psi) | |
| maximum discharge pressure | |
| Maximum Operating Temperature | |
| Metallic Heads: | 121 ̊C (250 ̊F) - Consult factory for correct component selection for temperatures from 71 ̊C (160 ̊F) to 121 ̊C (250 ̊F). |
| Non-metallic Heads: | 140 ̊F (60 ̊C) |
| Maximum Solids Size | 500 microns |
| Inlet Port | 1-1/4 inch BSPT |
| 1-1/4 inch NPT | |
| Discharge Port | 3/4 inch BSPT |
| 3/4 inch NPT | |
| Shaft Diameter | 28.6 mm (1-1/8 inch) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 2.1 liters (2.2 US quarts) |
| Weight | |
| Metallic Heads: | 66 kg (145 lbs.) |
